MSI B850 Gaming PLUS WiFi Project Zero - Socket AM5, DDR5
Scheda madre ATX AM5 con B850, design back-connect, VRM 12+2+1, DDR5 fino a 8200+, PCIe 5.0, 3× M.2, Wi-Fi 7, 5 Gb LAN, USB10G Type-C, audio 7.1 e cooling avanzato
Codice Produttore SKU007E75-001R

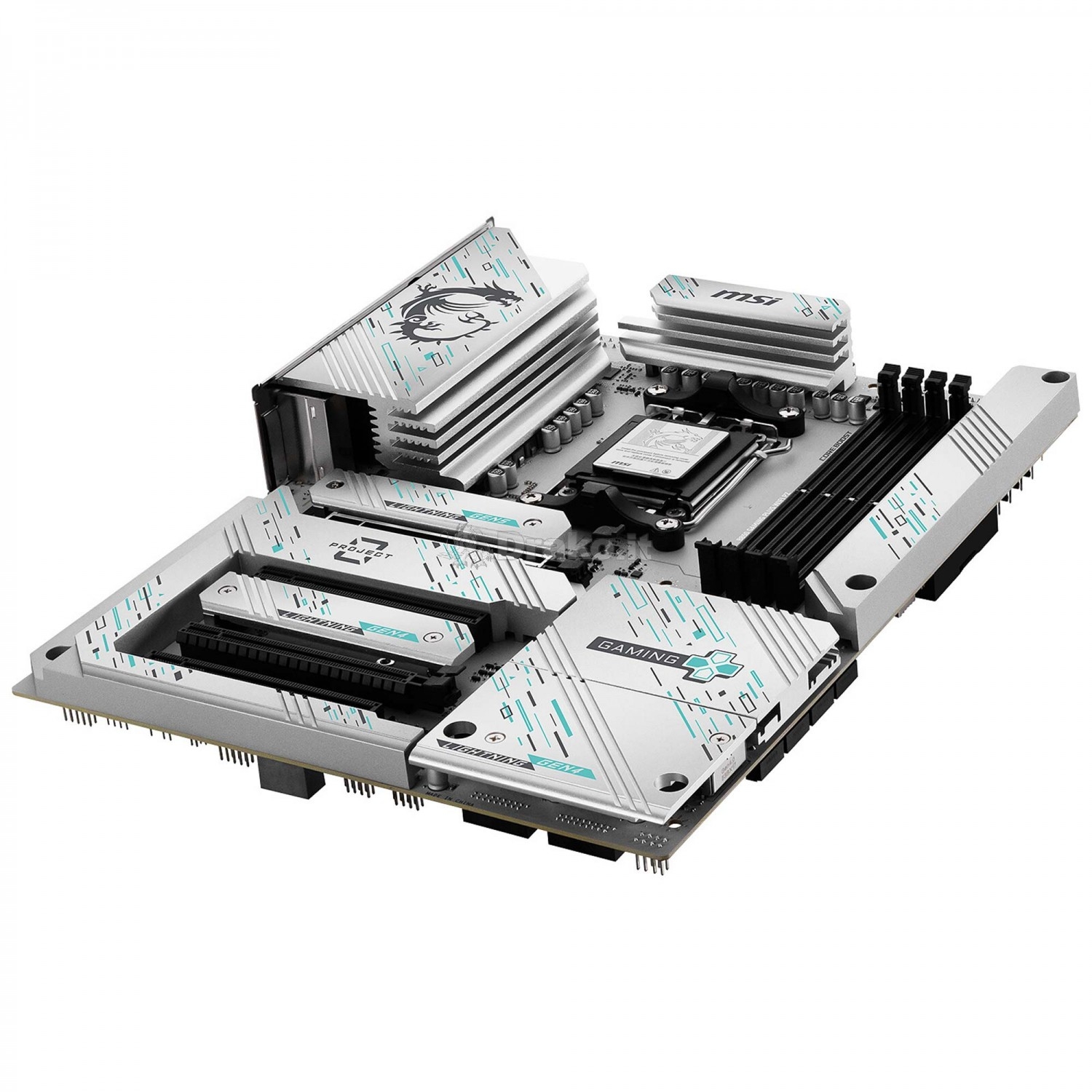

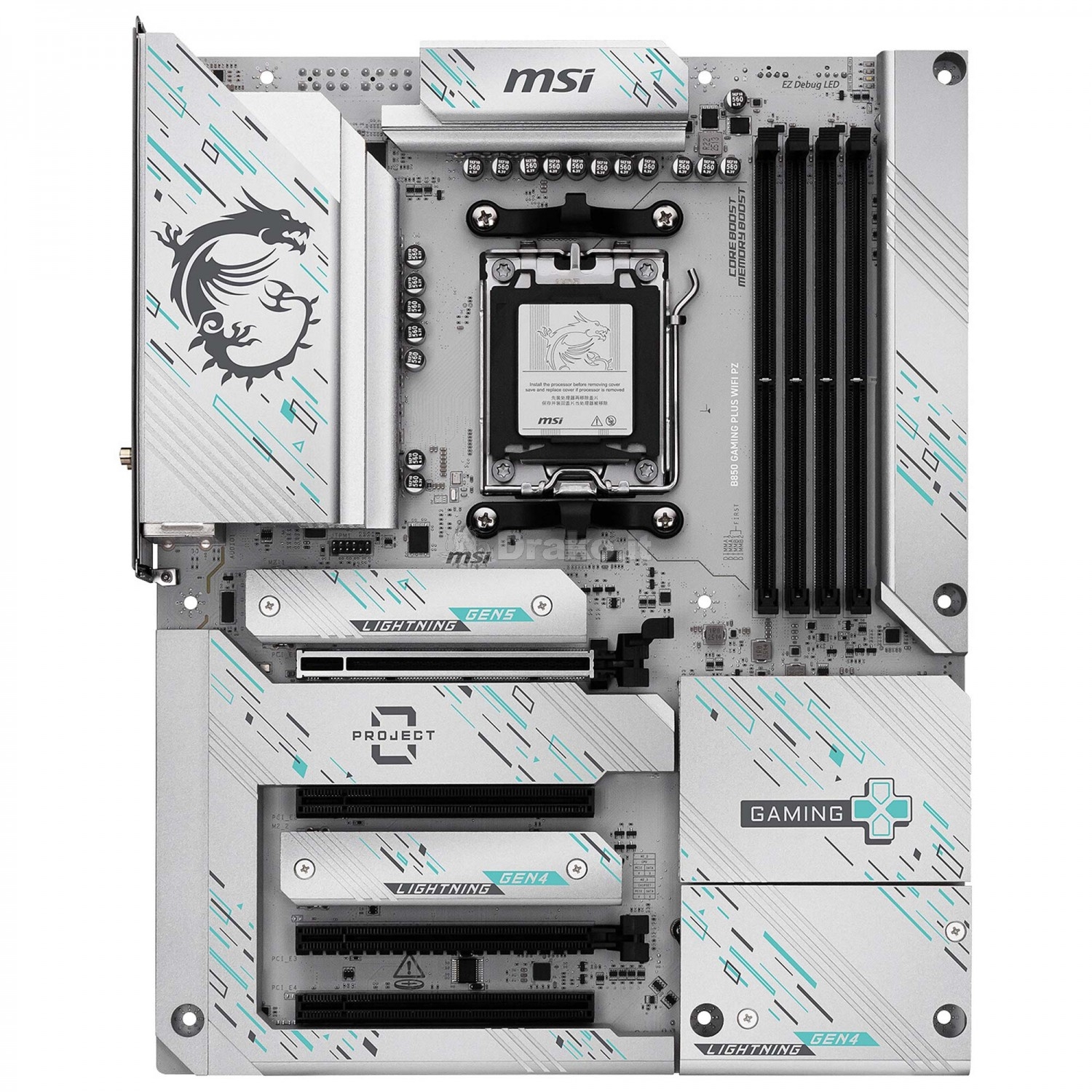

La MSI B850 GAMING PLUS WiFi PZ è una scheda madre ATX completa progettata per i gamer e i builder moderni che desiderano elevate prestazioni su piattaforma AM5. Monta processori AMD Ryzen™ 7000/8000/9000 con stabilità grazie al solido VRM 12+2+1 P-PAK Duet Rail Power System con tecnologie Core Boost, estesi dissipatori Frozr e pad termici ad alta conduttività. L’innovativo design Back-Connect sposta i connettori principali sul retro della scheda per un cablaggio più ordinato e un’estetica interna pulita.
Sul fronte prestazionale, supporta memorie DDR5 fino a 8200+ MT/s in OC grazie a Memory Boost e profili AMD EXPO™, insieme a quattro slot UDIMM fino a 256 GB. Offre espandibilità elevata con PCIe 5.0 x16 Steel Armor, tre slot M.2 (Gen5 x4, Gen4 x4, Gen4 x2) protetti da M.2 Shield Frozr, più 4 porte SATA per una varietà di configurazioni storage su misura.
La connettività wireless è un salto nel futuro: Wi-Fi 7 (fino a 5.8 Gbps), Bluetooth 5.4, LAN 5 Gb, USB4 e USB 10 Gbps Type-C sul pannello posteriore. Gli header frontali USB-C, ARGB e fan, oltre alle comodità EZ (per montaggio SSD o GPU senza viti, antenna magetica), rendono l’esperienza utente fluida. MSI attiva anche funzioni come Frozr AI Cooling, Mystic Light e gestione intelligente tramite MSI Center, per mixare facilezza d’uso, performance e stile.
Dati Tecnici:
- Modello: MSI B850 GAMING PLUS WiFi PZ
- Chipset / Socket: AMD B850 / AM5
- CPU supportate: AMD Ryzen 7000 / 8000 / 9000 Series
- VRM: 12+2+1 Duet Rail (P-PAK), Core Boost
- PCB: Resistenzia ottimizzata, dissipatori Frozr
- Memoria: 4× DDR5 UDIMM fino 256 GB, OC 8200+ MT/s, EXPO
- Slot PCIe:
- 1× PCIe 5.0 x16 (Steel Armor)
- Altri: PCIe 4.0/3.0 per espansioni multiple - Storage:
- 1× M.2 Gen5 x4 (128 Gbps)
- 1× M.2 Gen4 x4
- 1× M.2 Gen4 x2
- 4× SATA 6 Gb/s
- M.2 Shield Frozr, EZ M.2 Clip II - Networking:
- Wi-Fi 7 (320 MHz, fino 5.8 Gbps)
- Bluetooth 5.4

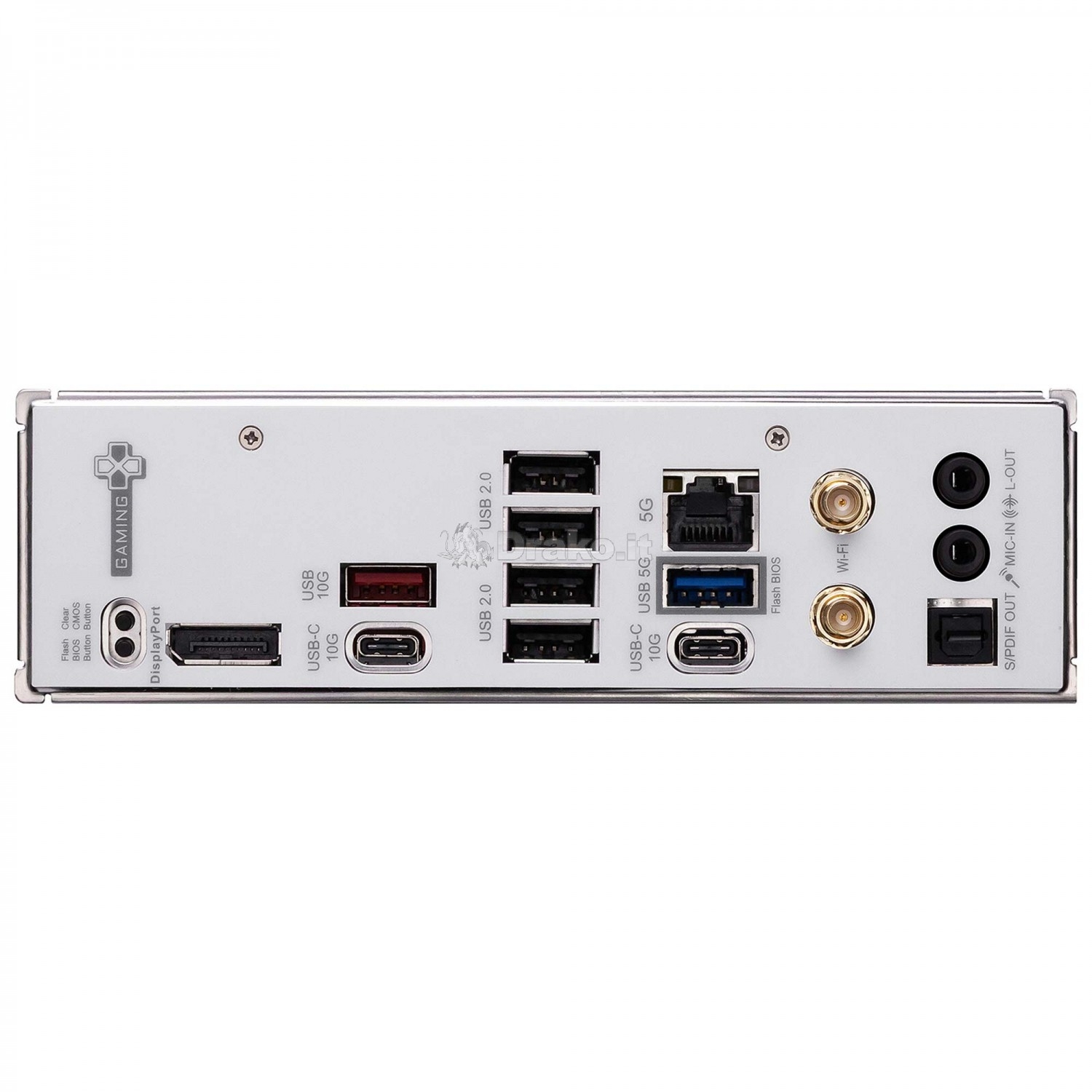

- Realtek 5 Gb/s LAN - USB / I/O:
- 1× USB 10 Gbps Type-C
- USB frontali Type-C & USB headers - Audio: Realtek ALC897 – Audio Boost 7.1
- Header: Fan, pump, ARGB, RGB, EZ Conn, TPM
- Comandi utilità: Clear CMOS, Flash BIOS, debug LEDs
- Design software: Frozr AI Cooling, Mystic Light, MSI Center
- Dimensioni: ATX – 244 × 305 mm
- Garanzia: 3 anni (MSI official)
