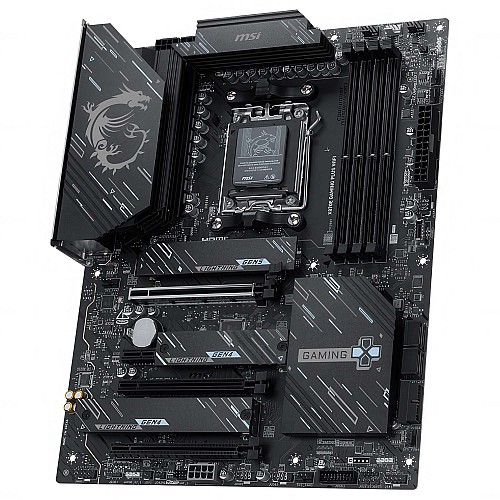

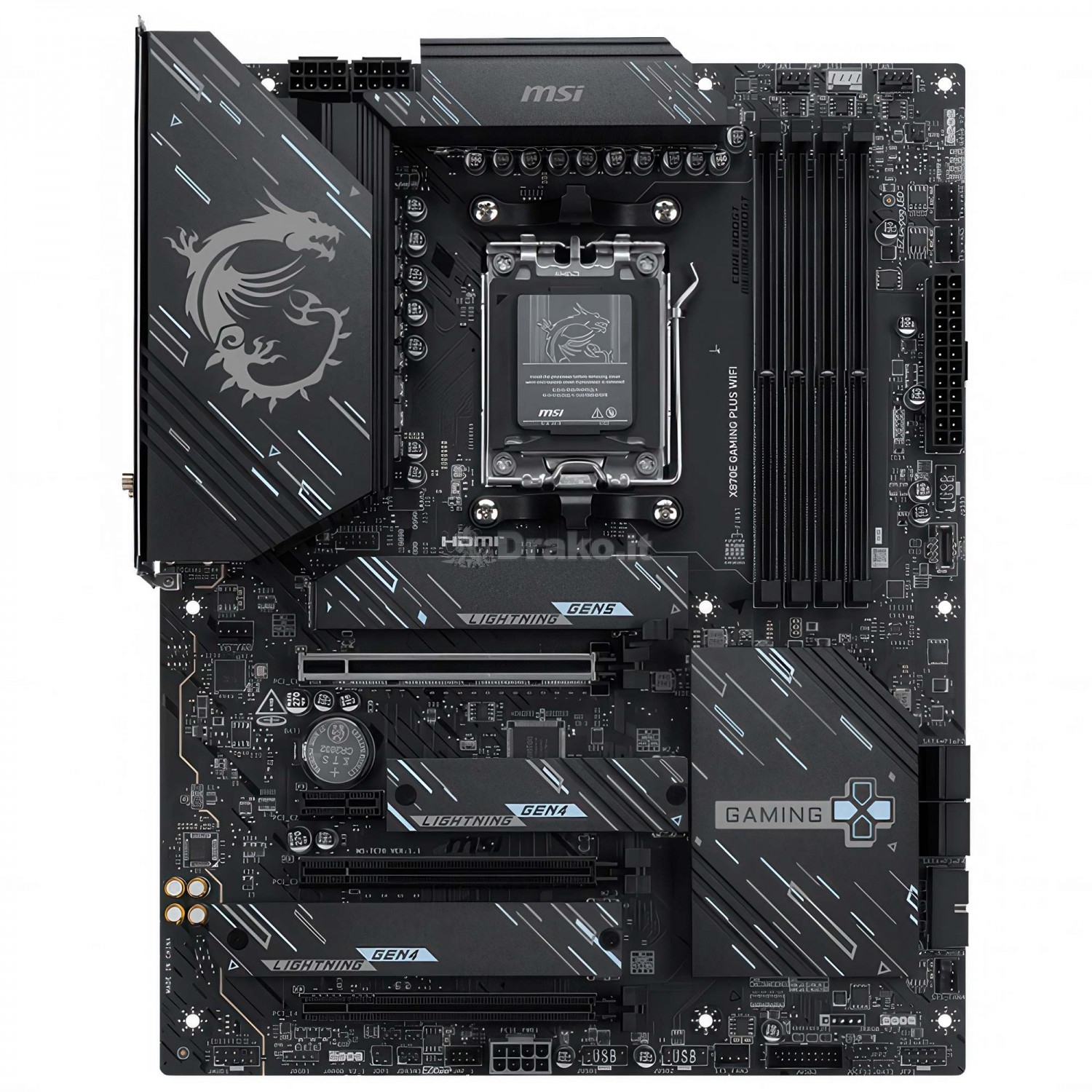

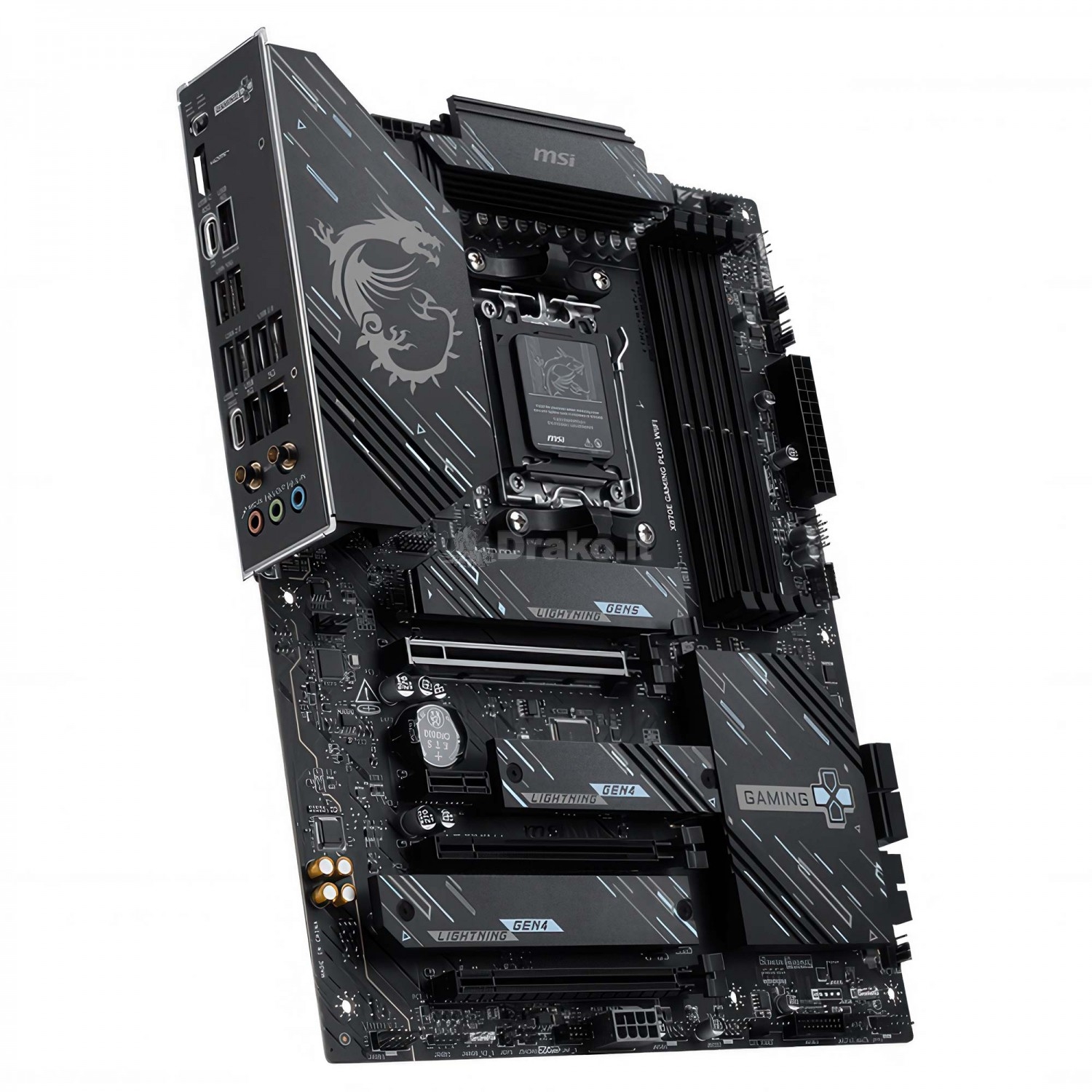

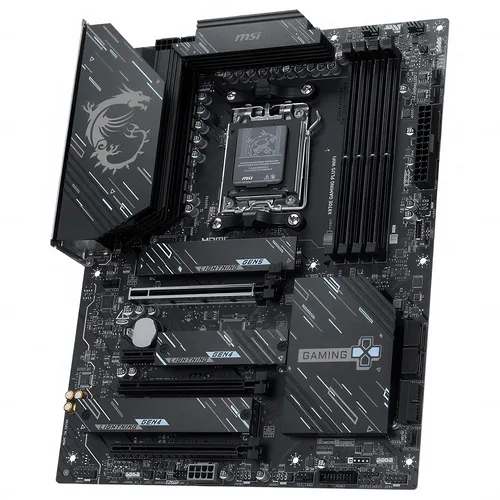

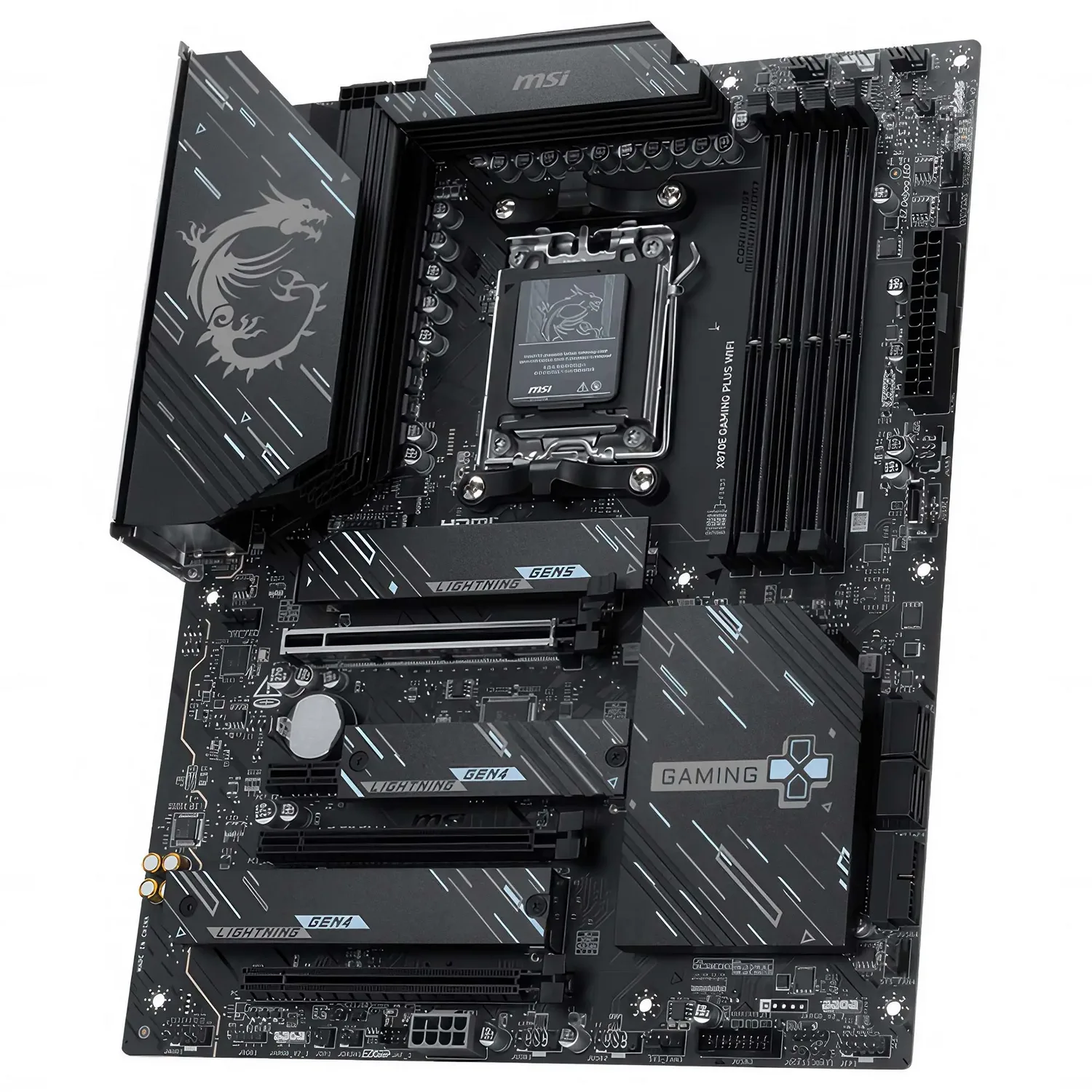

MSI X870E Gaming PLUS WiFi - Socket AM5, DDR5
Scheda madre ATX AM5 con chipset X870E, alimentazione robusta, DDR5 fino a 8200 MT/s (OC), PCIe 5.0, triple M.2, Wi-Fi 7, 5 GbE, USB 4 da 40 Gb/s, audio 7.1 e header ARGB integrati
Codice Produttore SKU007E70-001R
La MSI MPG X870E GAMING PLUS Wi-Fi è una scheda madre ATX di fascia alta ideale per gamer e creator che vuole una piattaforma AM5 completa ed evoluta. Costruita sul chipset AMD X870E e dotata di socket AM5, sfoggia un design PCB a 8 strati con rame da 2 oz e saldature SMT per garantire stabilità e overclock avanzato. La VRM 14+2+1 Duet Rail con fasi da 60 A, Core Boost e doppio connettore CPU a 8-pin assicurano un'affidabilità costante, anche sotto carichi intensissimi.
Il supporto memoria DDR5 è eccezionale, con quattro slot UDIMM capaci di raggiungere fino a 8200+ MT/s in overclock (1DPC 1R), grazie a Memory Boost e profili EXPO ottimizzati. L’espandibilità è massima: uno slot PCIe 5.0 x16 Steel Armor per le GPU più potenti, affiancato da PCIe 4.0 e 3.0, e tre M.2 NVMe (tra cui un Gen5 da 128 Gb/s) coadiuvati da dissipatori M.2 Shield Frozr II. Tutto questo è supportato da un sistema di raffreddamento personalizzato con dissipatori estesi e pad termici ad alta conduttività.
Sul lato connettività, X870E Gaming Plus Wi-Fi è all’avanguardia: Wi-Fi 7 (fino a 5,8 Gb/s) con Bluetooth 5.4 e LAN 5 Gb, insieme a una porta USB4 Type-C a 40 Gb/s con supporto video, una USB 3.2 Gen2×2 Type-C e numerose porte USB A ultra veloci. Il pannello frontale mantiene l’onda tech con header USB-C 10 Gb/s, fan e RGB header abbondanti, insieme a pratici strumenti DIY come EZ M.2 Clip II, EZ PCIe Clip II e antenna magnetica. Il BIOS include funzioni come Game Boost e Frozr AI Cooling, rendendo l’esperienza fluida e intuitiva.
Dati Tecnici:
- Modello: MSI MPG X870E GAMING PLUS Wi-Fi
- Chipset / Socket: AMD X870E / AM5
- Supporto CPU: AMD Ryzen 7000 / 8000 / 9000 Series
- VRM: 14+2+1 Duet Rail Power System, 60 A SPS, Core Boost
- PCB & costruzione: 8-layer, 2 oz copper, SMT soldering
- Memoria: 4× DDR5 UDIMM, fino a 256 GB, OC fino a 8200+ MT/s, EXPO
- Slot PCIe:
- 1× PCIe 5.0 x16 (Steel Armor)
- 1× PCIe 4.0 x4
- 2× PCIe 3.0 x1 - M.2 / SATA:
- 1× M.2 Gen5 x4 – 128 Gb/s
- 2× M.2 Gen4 x4
- 4× SATA III 6 Gb/s
- M.2 Shield Frozr II & EZ Clip II - Networking:
- Wi-Fi 7 (802.11be) + Bluetooth 5.4
- Realtek 5 Gb/s LAN - USB:

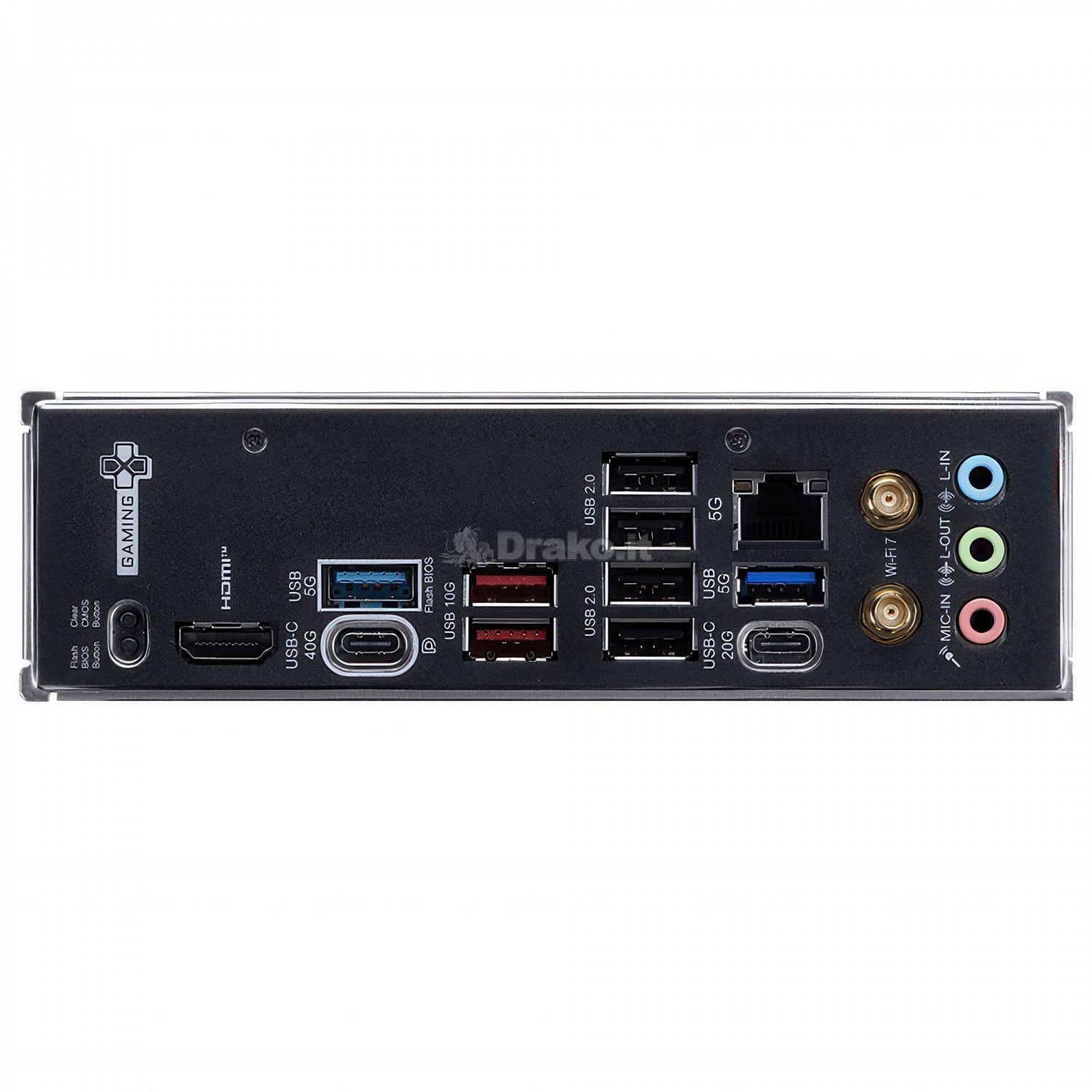

- 1× USB4 Type-C 40 Gb/s (Display-Out)
- 1× USB 3.2 Gen2×2 Type-C (20 Gb/s)
- 2× USB 10 Gb/s Type-A
- 2× USB 5 Gb/s Type-A
- 4× USB 2.0 - Audio: Realtek ALC897 – Audio Boost 7.1
- Header interni:
- 1× USB 3.2 Gen2 Type-C (front)
- 2× USB 2.0 headers
- 1× USB 3.2 Gen1 header
- 7× fan / pump headers
- Header ARGB / RGB / EZ-Conn / TPM - Diagnostica & utilità:
- LED Debug, EZ Debug LED, Tuning Controller header - Dimensioni: ATX – 243,8 × 304,8 mm
- Software & caratteristiche:
- Game Boost, Frozr AI Cooling
- Mystic Light (RGB Sync)
- EZ DIY (M.2 Clip II, PCIe Clip II, Antenna magnetica)
- Flash BIOS Button, Clear CMOS - Compatibilità OS: Windows 11 64-bit
- Garanzia: 3 anni (ufficiale MSI)
