PRODOTTO DISABILITATO FUORI CATALOGO NON ORDINABILE

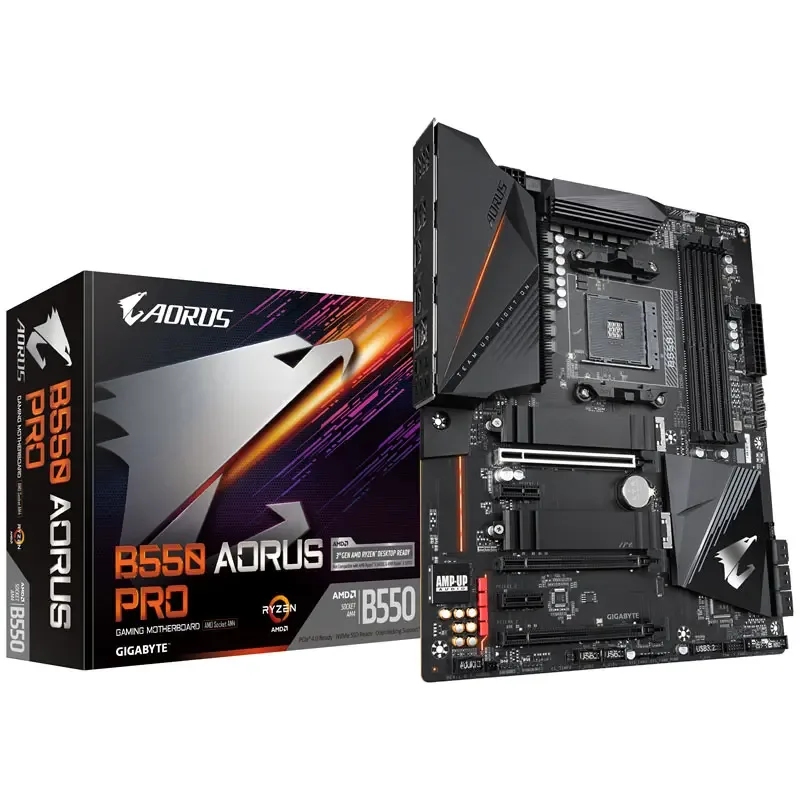

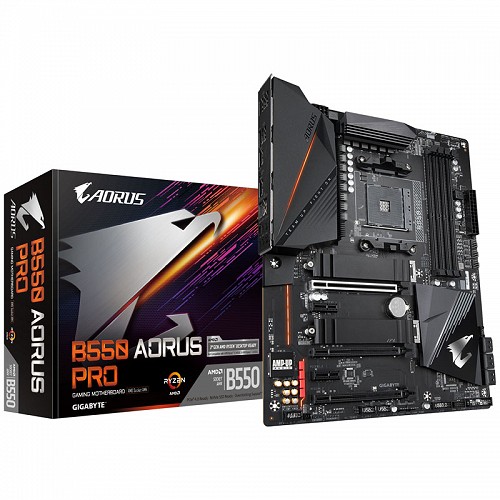

Gigabyte B550 Aorus Pro, AMD B550 - Socket AM4
Motherboard ATX chipset AMD B550 da Gigabyte con 1ื PCIe 4.0 x16, 2ื M.2, 6ื SATA 6G, 3x USB 3.1 & illuminazione RGB Fusion
Copyright © Drako.it S.r.l.
Dati Tecnici:
- Formato: ATX (305 x 244 mm)
- Chipset: AMD B550
Socket: AM4 (per Matisse) - RAM:
4x DDR4 (max. 3.200 MHz, 5.200 in OC)
Dual-Channel
max. 128 GB - Slot:
1x PCIe 4.0 x16 (x16)
2x PCIe 3.0 x16 (x2/x1)
1x PCIe 3.0 x1 - Connessioni Interne:
6x SATA 6G (RAID 0, 1, 10)
1x M.2 (M-Key PCIe 4.0 x4 & SATA, 22110/2280/2242)
1x M.2 (M-Key PCIe 3.0 x4, 22110/2280/2242)
2x USB 3.0 (USB 3.2 Gen1)
4x USB 2.0
1x Front-Panel-Audio-Connector
1x Front-Panel-Connector
1x Noise-Detection-Header
2x Temperatursensor
1x System Panel Connector
1x Clear CMOS Jumper
1x TPM-Connector - Connettori Ventole:
1x CPU Cooler (4-Pin)
1x CPU Cooler OPT / Pompa (4-Pin)
2x System FAN / Pompa (4-Pin)
4x System FAN - RGB-Header:
2x 4-Pin-RGB-Header (12VGRB)
2x 3-Pin-RGB-Header (5VDG)
1x CPU cooler LED Strip / RGB LED Strip - Connessioni Esterne:
2x USB 3.1 (USB 3.2 Gen 2, Typ A)
1x USB 3.1 (USB 3.2 Gen 2, Typ C)
3x USB 3.0
6x USB 2.0
1x Gigabit LAN (2,5GbE, Realtek RTL8125B-CG)
1x HDMI
5x Audio (Realtek ALC1220-VB, 7.1 Sound)
1x Q-Flash Plus Button
1x Optical S/PDIF - Alimentazione:
1x 24 Pin ATX12V
1x 8 Pin ATX12V - Garanzia: 3 anni
