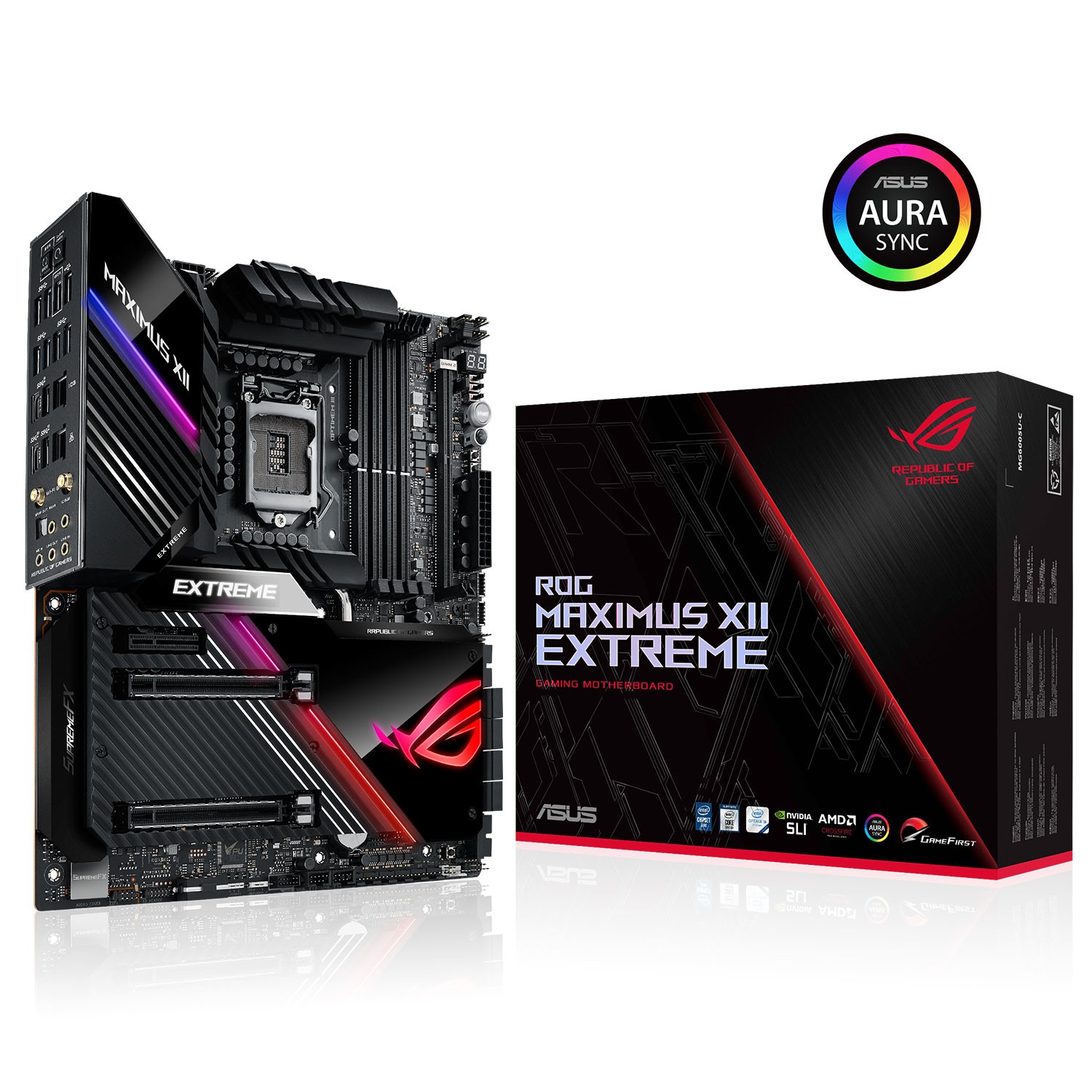

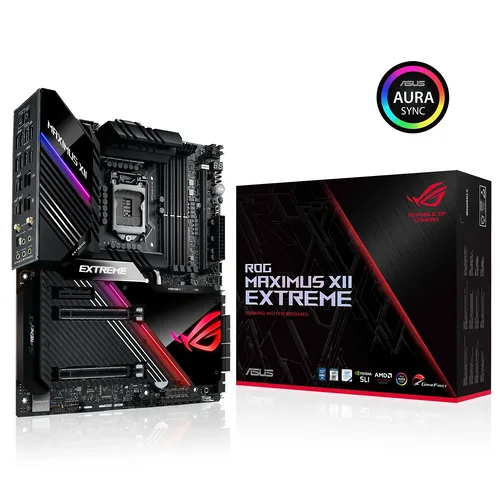

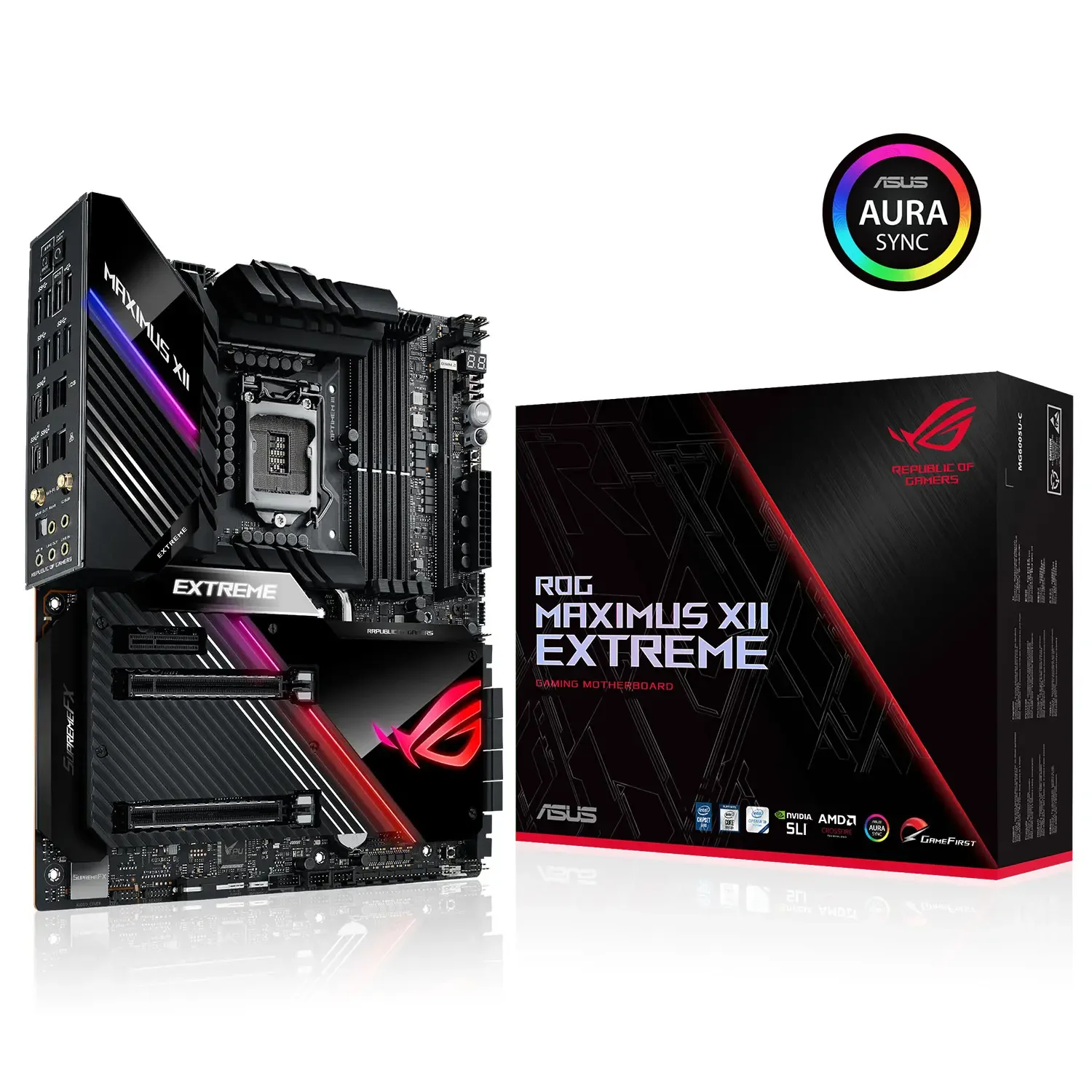

Asus ROG Maximus XII EXTREME, Intel Z490 Motherboard, RoG - Socket 1200
scheda madre ATX con chipset Intel Z490, 3x PCIe 3.0 x16 (x16/x8/x4), 3× M.2 (PCIe 3.0 x4) & 6x SATA 6G, 8x USB 3.2 & Wi-Fi 6 AX201 / Bluetooth 5.1 con AURA
Copyright © Drako.it S.r.l.
Dati Tecnici:
- Formato: E-ATX
- Chipset: Intel Z490
Socket: 1200 per CPU Intel di 10a generazione - RAM:
4x DDR4 (2.133 MHz, fino a 4.800 MHz con OC)
Dual-Channel
Max. 128 GB - Slot:
1× PCIe 3.0 x16
1× PCIe 3.0 x16 (bus x8)
1× PCIe 3.0 x16 (bus x4)
Compatibile con configurazioni multi VGA: 3-Way AMD CrossFire, 2-Way NVIDIA SLI - Connessione Dati:
Intel Wi-Fi 6 AX201
Marvell AQtion AQC107 10Gb Ethernet
Intel I225-V 2.5Gb Ethernet
Bluetooth v5.1 - Connessioni Interne:
8 x SATA 6Gb/s connector(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Slow Mode switch(es)
8 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
2 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
2 x RSVD Switch
1 x Start button
1 x FlexKey button
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s) - Connessioni Esterne:
1 x Marvell AQtion AQC107 10Gb Ethernet
1 x Intel I225-V 2.5Gb Ethernet
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Alimentazione:
1× 24-Pin ATX 12V
2× 8-Pin ATX 12V
1× 4-Pin ATX 12V - Accessori:
1 x ROG logo plate sticker
3 x M.2 Screw Package
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
2 x mini DisplayPort Cable
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
8 x ROG weave SATA 6G cable
1 x ROG DIMM.2 with heatsink
2 x M.2 Pad for ROG DIMM.2
1 x 2-in-1 Rubber pad
1 x ROG Multi-Bit screwdriver
1 x THUNDERBOLTEX 3-TR Card
1 x ASUS TB header cable
1 x USB2.0 Cable
ROG key chain
