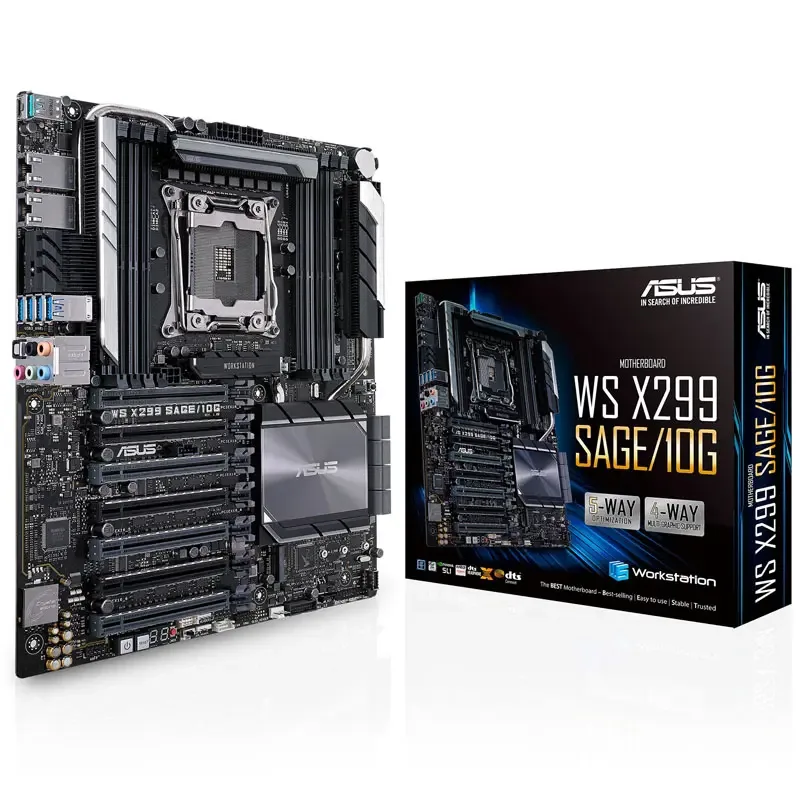

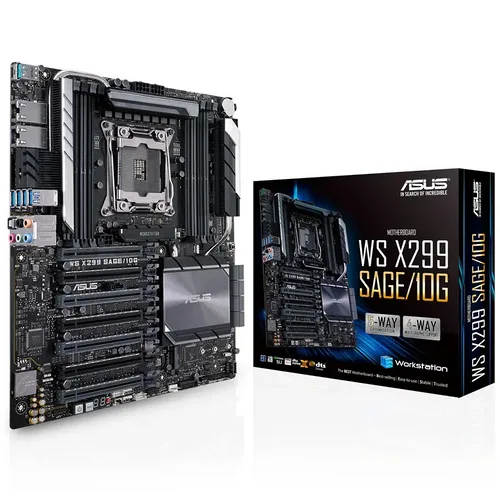

Asus WS X299 SAGE/10G, Intel X299 Motherboard - Socket 2066

Dati Tecnici:

• Formato: SSI CEB (30,5 x 26,7 cm)
• Chipset: Intel X299 ("Lewisburg")
  Socket: 2066 (per CPU Intel Skylake-X & Kaby Lake-X)
• RAM:
  8x DDR4 (Skylake-X: DDR4-2.666; max 128 GB con CPU a 44 / 28 Lane)
  4x DDR4 (Kaby Lake-X: DDR4-2.666; max 64 GB con CPU a 16 Lane)
  Quad-Channel (Skylake-X; supportato con CPU a 44 / 28 Lane)
  Dual-Channel (Kaby Lake-X; supportato con CPU a 16 Lane)
• Slots:
  7x PCIe 3.0 x16 (single x16, dual x16/x16, triple x16/x16/x16, quad x16/x16/x16/x16, seven x16/x8/x8/x8/x8/x8/x8)
• Connessioni Interne:
  8x SATA 6Gb/s
  1x M.2 (PCIe 3.0 x4, M-Key, 2242/2260/2280)
  1x M.2 (PCIe 3.0 x4, M-Key, 2242/2260/2280/22110)
  2x USB 3.0
  1x U.2 miniSAS HD/SFF-8643 (PCIe 3.0 x4)
  1x Thunderbolt Header
  1x USB 3.1 Gen 2 front Panel SSI CEB
  1x COM
  1x AAFP SSI CEB
  1x TPM Header
  1x VROC_HW_Key
  1x EZ XMP Switch
  1x Power-on Button
  1x Reset Button
  1x Clear CMOS Button
  1x USB BIOS Flashback Button
  1x System panel SSI CEB
  1x Thermal Sensor SSI CEB
  1x CPU_OV Jumper
  1x MemOK! Button
• Connessioni Ventole:
  1x CPU Fan
  2x Case Fan
  1x 5-Pin EXT_FAN (Extension Fan) SSI CEB
  1x CPU OPT
  1x M.2 Fan Header
  1x AIO_PUMP SSI CEB
  1x Pumpe Header (4-Pin)
• Connessioni esterne:
  1x USB 3.1 (Typ C)
  1x USB 3.1 (Typ A)
  4x USB 3.0 (Typ A)
  2x RJ45 LAN-Port (X550-AT2)
  1x S/PDIF-Ausgang (optisch)
  5x Audio (Realtek ALCS1220A)
• Connettore RGB:
  1x Aura RGB Strip Header
  1x Aura D-RGB Strip Header
• Alimentazione:
  1x 24-Pin E-ATX
  2x 8-Pin ATX 12V
  1x 6-Pin ATX Power SSI CEB
• Contenuto confezione:
  manuale
  Cavo di prolunga per LED indirizzabili
  8x cavo SATA 6Gb / s
  1x set di staffe verticali M.2
  1x schermo I / O
  1x cavo per porta COM
  1x viti M.2
  1x DVD di supporto
  1x kit di raffreddamento MOS (supporto ventola e ventola 40 x 40 mm)
  1x bridge SLI a 3 vie
  1x Bridge SLI a 4 vie
  1x PONTE SLI HB (2 VIE-M)
  1x connettore Q.
