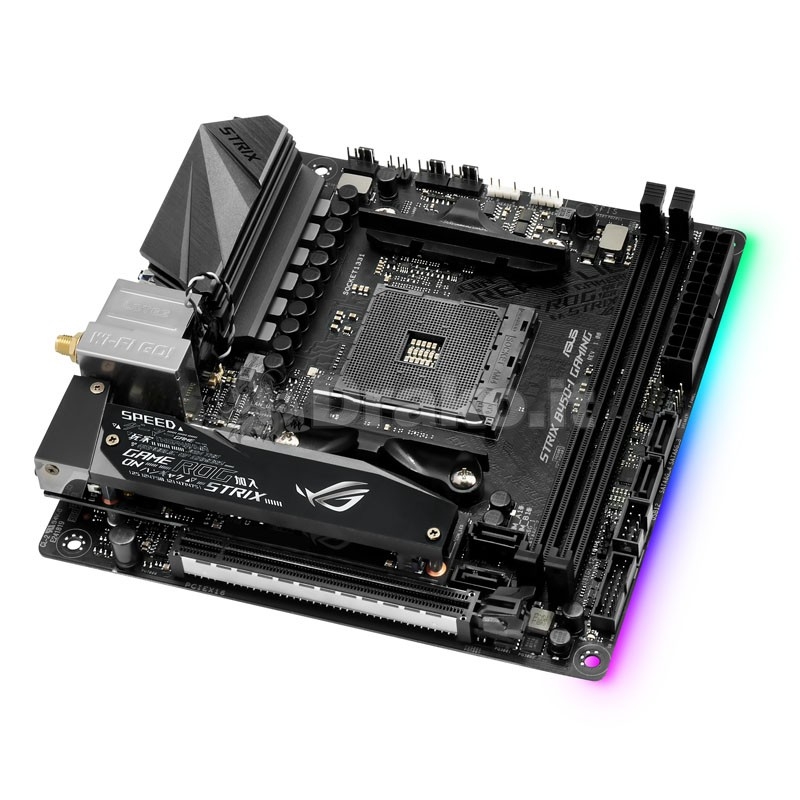

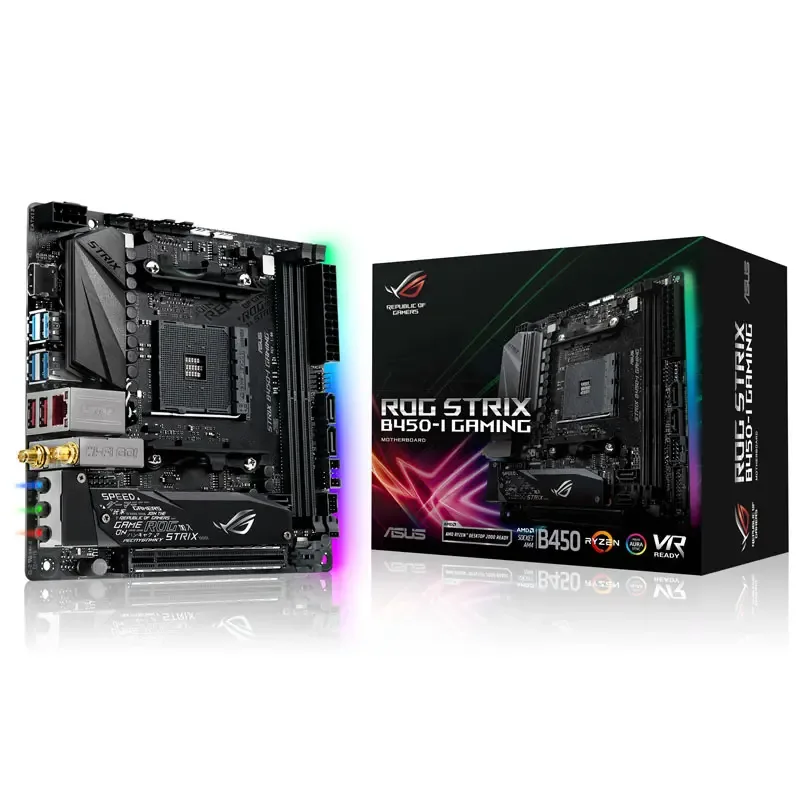

Asus ROG Strix B450-I Gaming, AMD B450 Motherboard - Socket AM4

Dati Tecnici:

• Formato: Mini-ITX (170 x 170 mm)
• Chipset: AMD B450
  Socket: AM4 (Pinnacle Ridge / Summit Ridge / Bristol Ridge / Raven Ridge)
• RAM:
  2x DDR4 (max. 2.667 MHz, 3.400 in OC)
  Dual Channel
  max. 32 GB
• Slot:
  1x PCIe 3.0 x16
• Connessioni Interne:
  4x SATA 6G (RAID 0, 1, 10)
  1x M.2 (M-Key, PCIe 3.0 x4 con max. 32 Gbit/s, da 2242 a 22110)
  1x M.2 (M-Key, PCIe 3.0 x2 & SATA6G, da 2242 a 2280)
  2x USB 3.0 (1 Header)
  2x USB 2.0 (1 Header)
  1x CPU Fan (4-Pin)
  1x Chassis Fan (4-Pin)
  1x AIO PUMP (4-Pin)
  1x Front Panel Audio Connector
  1x Thermal Sensor Connector
  1x Clear CMOS jumper
  1x System Panel Connector
  1x Speaker Connector
  1x 3 Pin RGB Header (5V)
  1x 4 Pin RGB Header (12V)
• Connessioni Esterne:
  2x Antenne WLAN
  2x USB 3.1 (1x Typ A & C)
  2x USB 3.0
  2x USB 2.0
  1x Gigabit LAN (Intel I211AT)
  1x HDMI 2.0b
  3x Audio (Realtek ALC1220, 7.1 Sound)
• Alimentazione:
  1x 24 Pin ATX12V
  1x 8 Pin ATX12V
