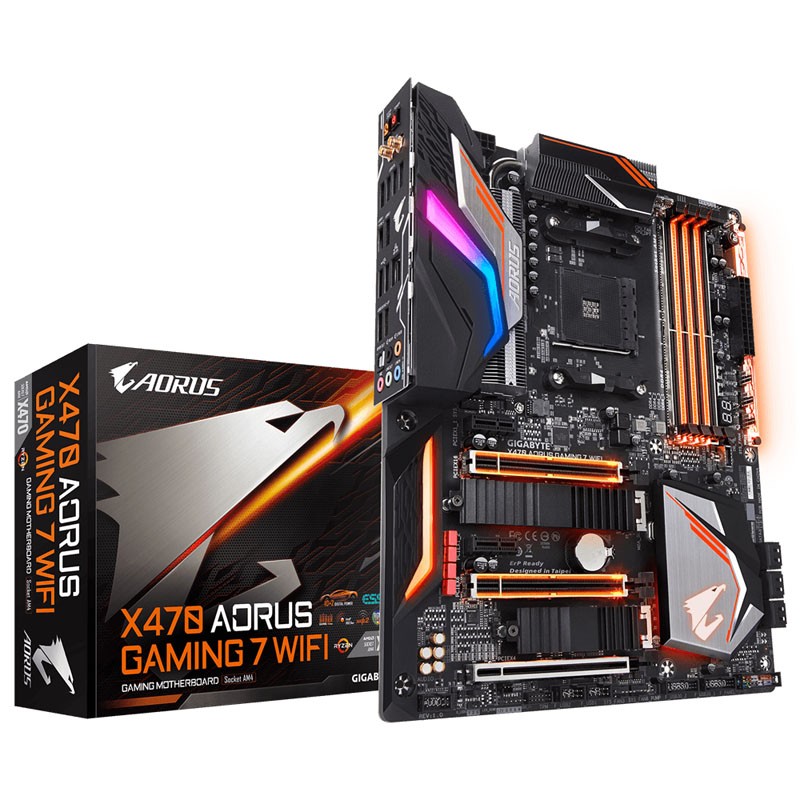

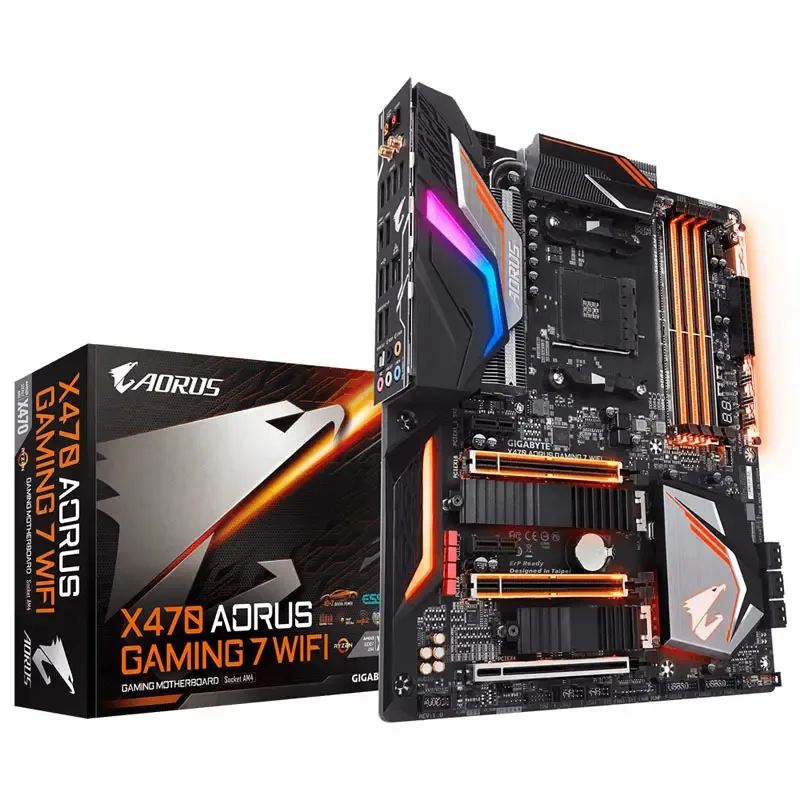

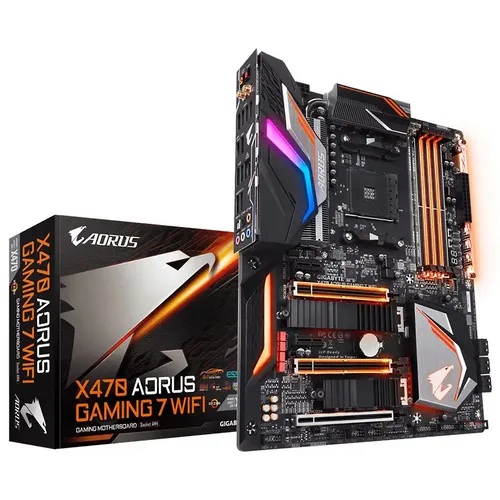

Gigabyte X470 Aorus Gaming 7 WiFi, AMD X470 Mainboard - Socket AM4

Dati Tecnici:

• Formato: ATX (305 x 244 mm)
• Chipset: AMD X470
  Socket: AM4 (per Pinnacle Ridge / Summit Ridge / Bristol Ridge / Raven Ridge)
• RAM: 4x DDR4 (max. 2.933 MHz, 4.000 in OC)
  Dual-Channel
  max. 64 GB
• Slot:
  1x PCIe 3.0 x16
  1x PCIe 3.0 x16 (x8)
  1x PCIe 2.0 x16 (x4)
  Configurazione Multi GPU: 3-way AMD CrossFireX / 2-way NVIDIA SLI
  2x PCIe 2.0 x1
  1x M.2 E-Key (utilizzato dal modulo WLAN)
• Connessioni Interne:
  6x SATA 6G (RAID 0, 1, 10)
  1x M.2 (M-Key, PCIe 3.0 x4 & SATA6G max. 32 Gbit/s, horizontal, 2242 / 22110)
  1x M.2 (M-Key, PCIe 3.0 x4 max. 32 Gbit/s, horizontal, 2242 / 2280)
  2x USB 3.0 Header (4 Ports)
  2x USB 2.0 Header (4 Ports)
  1x USB 3.1 Header (1 Port)
  5x 4 Pin FAN (PWM)
  2x Watercooling PUMP
  1x Start Button
  1x Reset Button
  1x Retry Button
  1x Front Panel Audio Connector
  2x 5-Pin RGB Header (12VGRBW)
  2x 3-Pin RGB Header (digital)
  1x TPM Connector

• Connessioni Esterne:
  1x USB 3.1 (Type A, max. 10 Gbit/s)
  1x USB 3.1 (Type C, max. 10 Gbit/s)
  1x USB 3.0 (Type A, max. 5 Gbit/s)
  2x USB 2.0
  1x Gigabit LAN (Intel i211AT)
  5x Audio (ALC1220, 7.1 Sound)
  1x Optical S/PDIF Out
  1x Clear CMOS Button
  2x WLAN Antenne
  1x BIOS Flashback Button
• Alimentazione:
  1x 24-Pin ATX12V
  1x 8-Pin ATX12V
  1x 4-Pin ATX12V
