PRODOTTO DISABILITATO FUORI CATALOGO NON ORDINABILE

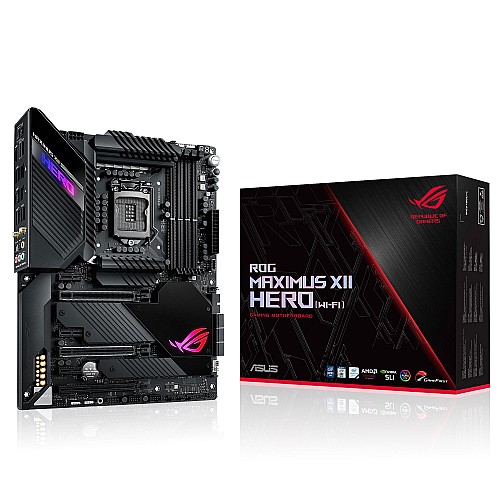

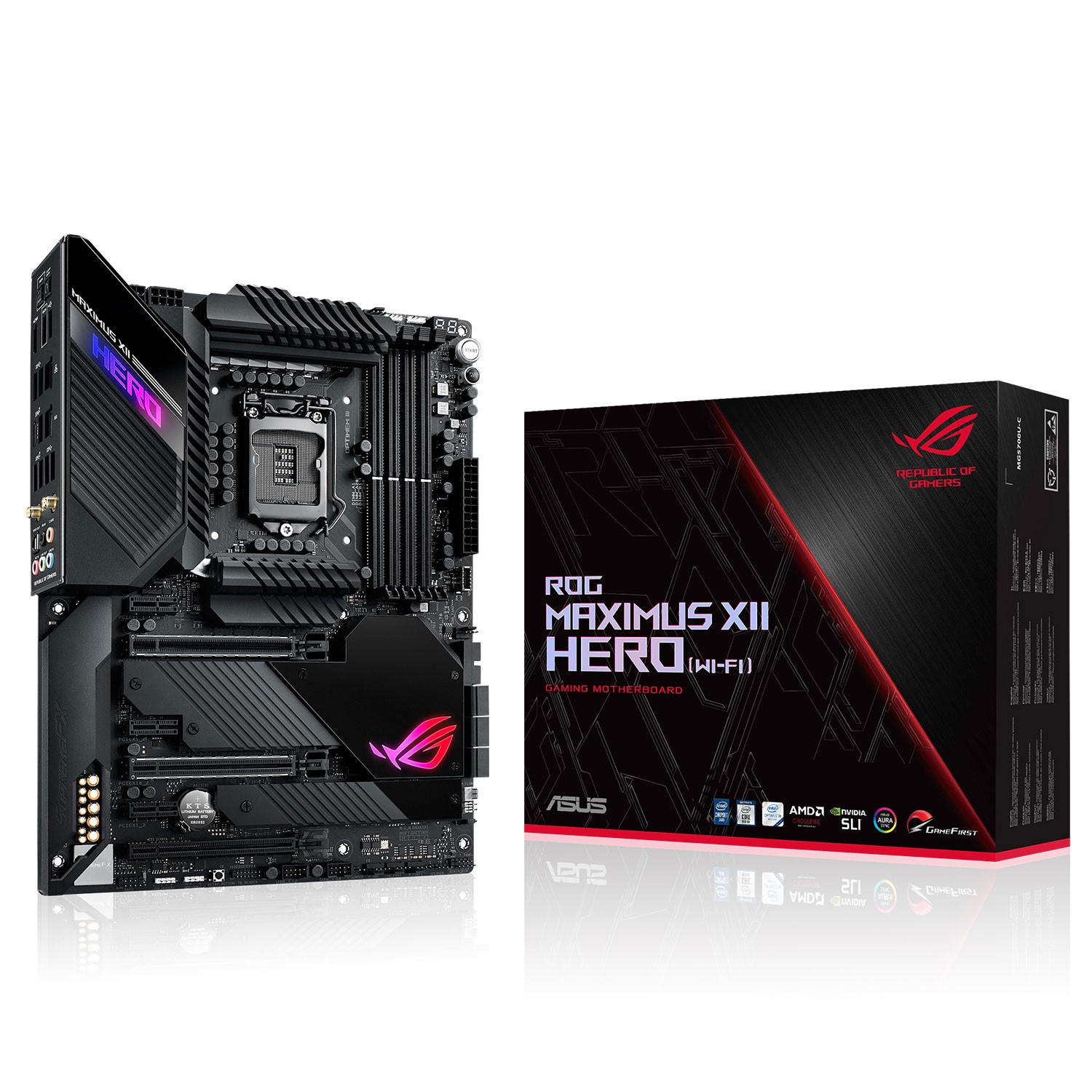

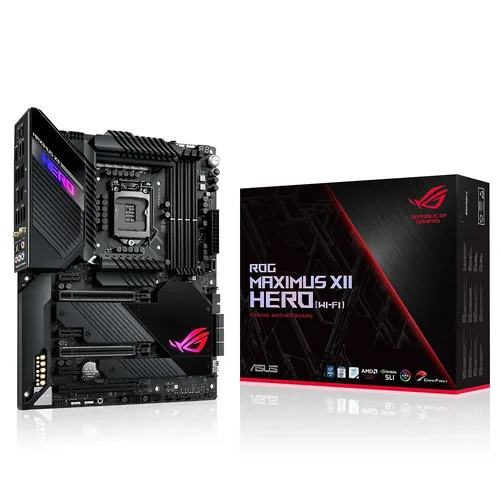

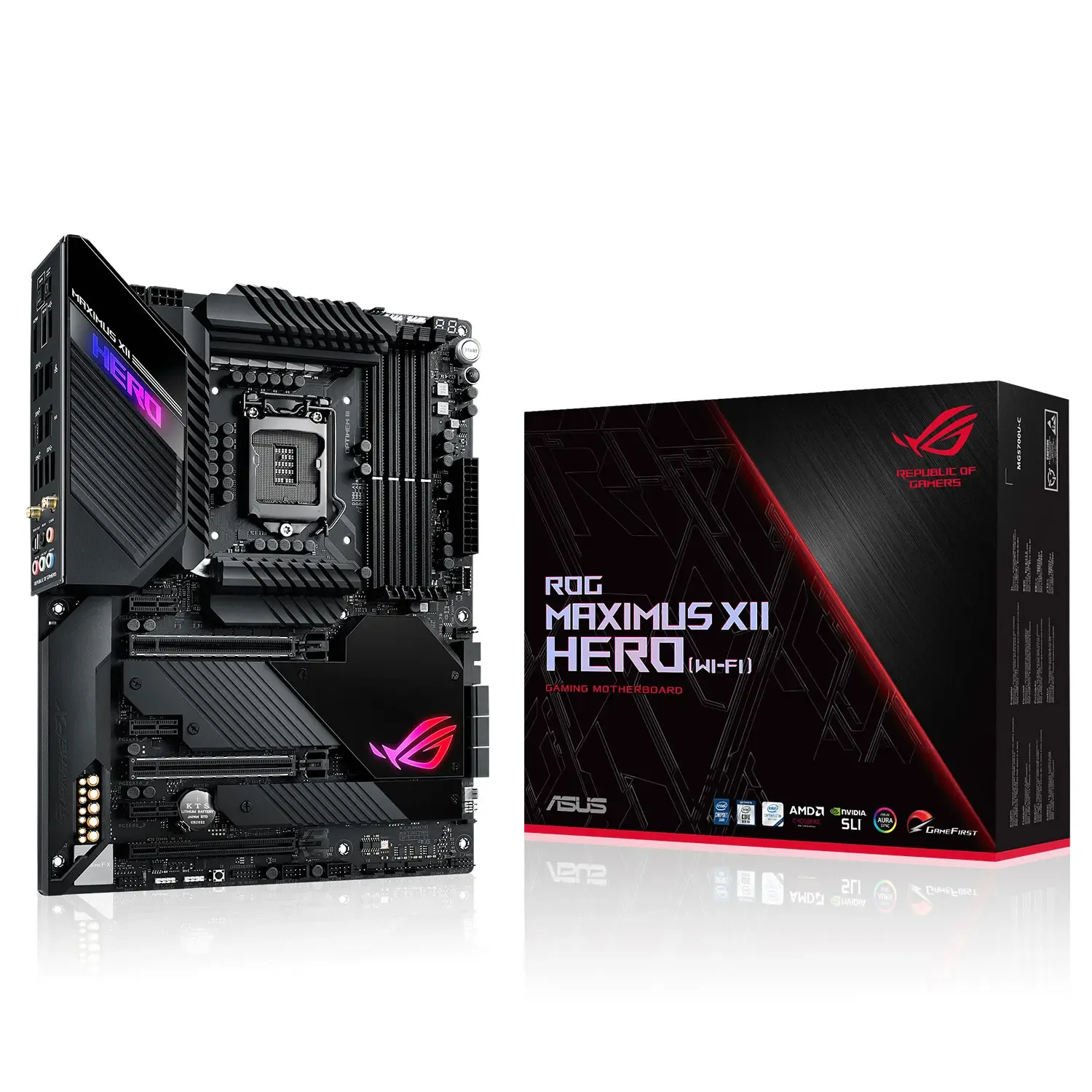

Asus ROG Maximus XII HERO Wi-Fi, Intel Z490 Motherboard, RoG - Socket 1200

scheda madre ATX con chipset Intel Z490, 3x PCIe 3.0 x16 (x16/x8/x4), 3× M.2 (PCIe 3.0 x4) & 6x SATA 6G, 8x USB 3.2 & Wi-Fi 6 AX201 / Bluetooth 5.1 con AURA


  • Currently 0.00/5
  • 1
  • 2
  • 3
  • 4
  • 5
   (Calcolato su 0 recensioni)
Codice Prodotto Drako.it
023-853
Codice a Barre EAN8
4718017664097

Codice Produttore SKU
90MB12R0-M0EAY0

Produttore
Altri prodotti Asus
Clicca per altri prodotti
Copyright © Drako.it S.r.l.
MSI Exoprimal Game bundler

Dati Tecnici:

  • Formato: ATX
  • Chipset: Intel Z490
    Socket: 1200 per CPU Intel di 10a generazione
  • RAM:
    4x DDR4 (2.133 MHz, fino a 4.800 MHz con OC)
    Dual-Channel
    Max. 128 GB
  • Slot:
    1× PCIe 3.0 x16
    1× PCIe 3.0 x16 (bus x8)
    1× PCIe 3.0 x16 (bus x4)
    Compatibile con configurazioni multi VGA: 3-Way AMD CrossFire, 2-Way NVIDIA SLI
    3× PCIe 3.0 x1
  • Connessione Dati:
    Intel Wi-Fi 6 AX201
    Marvell AQtion AQC111C 5Gb Ethernet
    Intel I219-V 1Gb Ethernet
    Bluetooth v5.1
  • Connessioni Interne:
    6 x SATA 6Gb/s connector(s)
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x USB 3.2 Gen 1 front panel TypeC connector
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x Thunderbolt header(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
  • Connessioni Esterne:
    1 x Marvell® AQtion AQC111C 5Gb Ethernet
    1 x Intel® I219-V 1Gb Ethernet
    1 x HDMI 1.4b
    4 x USB 3.2 Gen 2
    4 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS FlashBack™ Button(s)
    1 x ASUS Wi-Fi Module
    5 x ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220
  • Alimentazione:
    1× 24-Pin ATX 12V
    1× 8-Pin ATX 12V
    1× 4-Pin ATX 12V
  • Accessori:
    Addressable LED extension cable
    1 x ROG logo plate sticker
    4 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x ROG big sticker
    1 x Q-Connector
    1 x Wi-Fi Antenna(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x ROG Thank you card
    2 x M.2 SSD screw package(s)
    2 x M.2 Rubber Package(s)
    1 ROG key chain
Asus ROG Maximus XII HERO Wi-Fi, Intel Z490 Motherboard, RoG - Socket 1200
