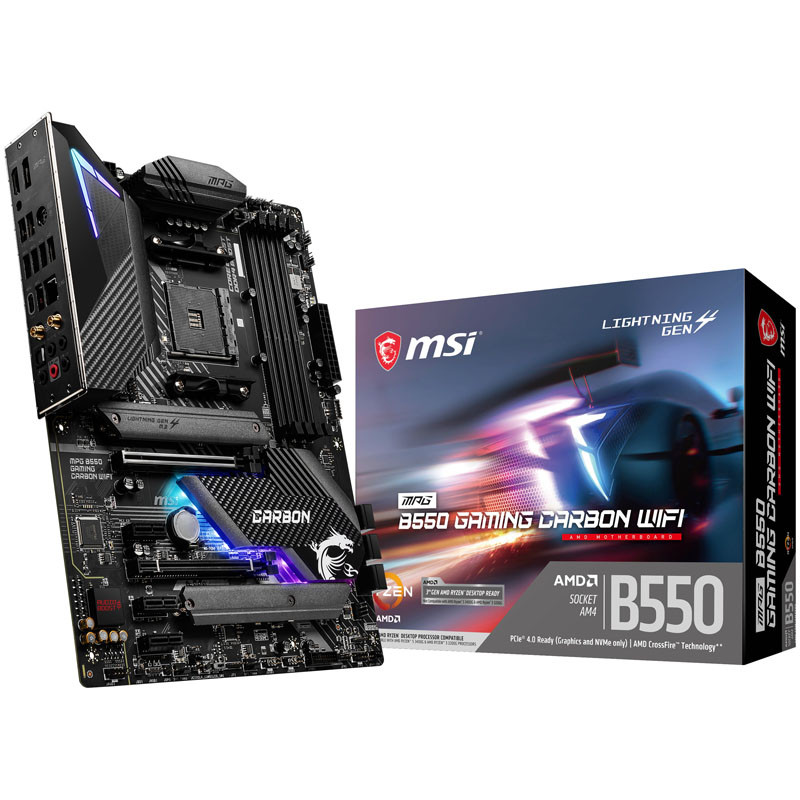

MSI MPG B550 Gaming Carbon WiFi, AMD B550 Mainboard - Socket AM4
Motherboard ATX chipset AMD B550 da MSI con 1× PCIe 4.0 x16, 2× M.2, 6× SATA 6G, 2x USB 3.1 / 4× USB 3.0 & illuminazione MSI Mystic Light Sync
Il chipset B550 è il cuore della scheda madre MSI MPG B550 Gaming Carbon WiFi ed è stato appositamente ottimizzato per le CPU Ryzen della serie 3000 "Matisse" e della serie 5000 "Vermeer". Le schede madri B550 supportano tutte le funzionalità dei processori Ryzen di terza e quarta generazione, soprattutto lo standard PCI Express versione 4.0 (PCIe 4.0).
Il PCIe 4.0 è compatibile con le versioni precedenti e può essere utilizzato con tutte le schede di espansione delle generazioni precedenti. Inoltre, le schede madri supportano fino a 128 GB di RAM con una frequenza di clock garantita di 3200 megahertz. Con l'overclock, sono possibili frequenze di clock molto più elevate, a seconda della scheda madre. Il chipset B550 consente anche di overcloccare il processore.
Dati Tecnici:
- Formato: ATX (305 x 244 mm)
- Chipset: AMD B550
Socket: AM4 (per Matisse / Vermeer) - RAM:
4x DDR4 (3.200 MHz, fino a 5.100 MHz con OC)
Dual-Channel
Max. 128 GB - Slot:
1x PCIe 4.0 x16 (x16)
1x PCIe 3.0 x16 (bus x4)
3x PCIe 3.0 (bus x1) - Connessioni Interne:
6x SATA 6G (RAID 0, 1, 10)
1x M.2 (M-Key, PCIe 4.0 x4 max 64 Gbit/s e SATA 6G, da 2242 a 22110)
1x M.2 (M-Key, PCIe 3.0 x4 max 32 Gbit/s, da 2242 a 2280)
1x M.2 (E-Key, occupato da Intel AX200)
1x USB 3.0 Typ C (USB 3.2 Gen1, un Header)
2x USB 3.0 (USB 3.2 Gen1, un Header)
4x USB 2.0 (due Header)
2x System-Panel-Connectors
1x Front-Panel-Audio-Connector
1x Chassis-Intrusion-Header
1x Clear-CMOS-Jumper
1x TPM-Connector - Connessioni Ventole:
1x CPU Fan (4-Pin)
1x Pompa AIO (4-Pin)
6x System-Fan-Header (4-Pin) - Header RGB:
1x 4-Pin RGB Header (12V)
2x 3-Pin ARGB Header (digital, 5V)
1x 3-Pin Corsair (digital, 5V) - Conessioni esterne:
1x PS/2 Mouse/Tastiera
1x USB 3.1 Type C (USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 Type A (USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 Type A (USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (max. 480 Mbit/s)
1x 2,5 Gigabit LAN (Realtek RTL8125B)
2x WLAN (Intel AX200)
1x DisplayPort
1x HDMI
5x Jack 3,5 mm (Realtek ALC1200, 7.1 Sound)
1x S/PDIF (ottico)
1x Flash BIOS - Alimentazione:
1x 24-Pin ATX 12V
1x 8-Pin ATX 12V
1x 4-Pin ATX 12V
