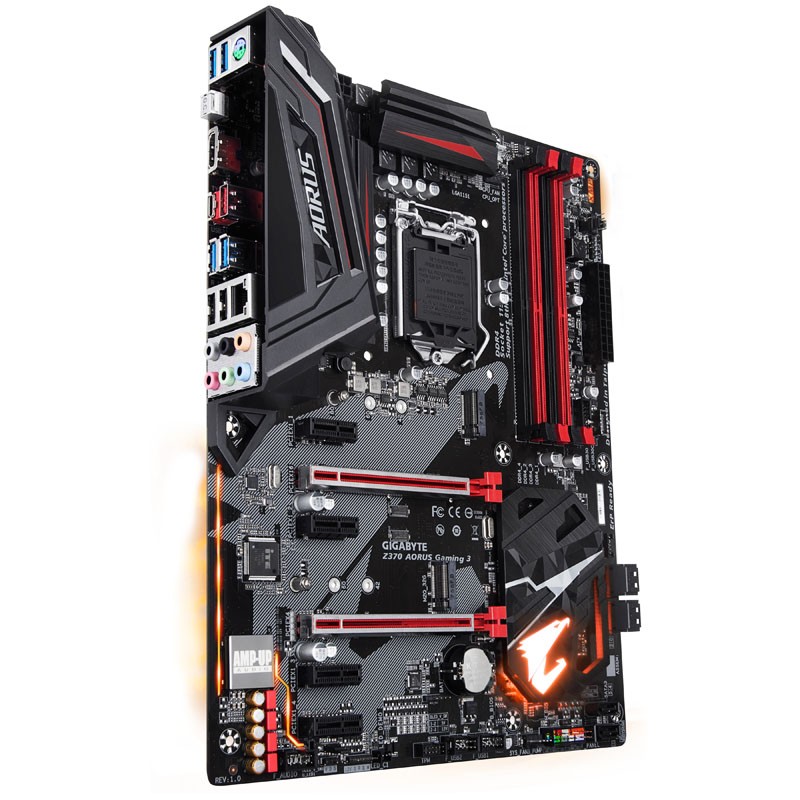

Gigabyte Z370 Aorus Gaming 3, Intel Z370 Mainboard - Socket 1151

Dati Tecnici:

• Formato: ATX (305 x 244 mm)
• Chipset: Intel Z370
  Socket: 1151 per CPU Intel di 8a generazione "Coffee Lake"
• RAM: 4× DDR4 (Coffee Lake: DDR4-2.666; max. 64 GB; OC max. 4.000 MHz)
  Dual-Channel
• Slot:
  1× PCIe 3.0 x16
  1× PCIe 3.0 x16 (x4)
  Compatibile con configurazioni SLI, CrossFireX
  4× PCIe 3.0 x1
• Connessioni Interne:
  6× SATA 6G
  1× M.2 (PCIe 3.0 x4 & SATA; 2242 / 2260 / 2280 / 22110)
  1× M.2 (PCIe 3.0 x4 & SATA; 2242 / 2260 / 2280)
  2× USB 3.0 (1 Header)
  4× USB 2.0 (2 Header)
  5× Header Ventole
  1× TPM Header
  1× Thunderbolt Add-In Card Connector
  2× RGBW-Header (5-Pin)
  2× Digital-LED-Strip-Header (3-Pin)
  2× Digital-LED-Strip-Power-Select-Jumper
  1× Front-Panel-Header
  1× Front-Panel-Audio-Header
  1× Chassis-OC-LED-Header
  1× Chassis-OC-Button-Header
  1× Clear-CMOS-Jumper
  1× S/PDIF-Out-Header
• Connessioni Esterne:
  1× Tastiera/Mouse PS/2
  2× USB 3.1 (1× Type A & Type C)
  4× USB 3.0
  2× USB 2.0
  1× OCSW Button
  1× HDMI
  1× Gigabit-LAN (Killer E2500)
  6× Audio (Realtek ALC1220 Codec)
• Alimentazione:
  1x 24-Pin ATX12V
  1x 8-Pin EPS12V
